Parker Airtek Element Coalescer Grade 1 Part # JE0050-C10

Description

JW & JT In-Line Filters
Airtek “JW” and “JT” in-line filters are designed for standard industrial service. They are ideal for small to medium size systems, point of use applications and the replacement of older, less efficient filters. The same high efficiency elements used in our severe duty “JL” Filters are used in the “JW” and “JT” models.

The “JW” housing (15 to 300 SCFM) consists of two sections. The head section is a die cast zinc or steel, depending on the size. The two sections work synergistically with the filter element to purify the flow of compressed air.

The fabricated steel maintain optimum velocities, minimize pressure drop and prevent re-entrainment. For easy element replacement, the two piece “JT” housing
separates at or below center, shortening pull clearances.

All Airtek filter assemblies are available with pressure differential indicators and electronic drain systems. The “JL” and “JT” come standard with stainless steel identification plates. To prolong element life and prevent overloading, both “JW” and “JT” filters should be installed downstream of an air receiver, after cooler and centrifugal separator. A high quality electronic drain valve protected by an in-line “Y” strainer is recommended for all drain points. When excessive contamination is present, a particulate filter should be installed upstream from
the coalescer. An adsorber should always be protected by a coalescer.

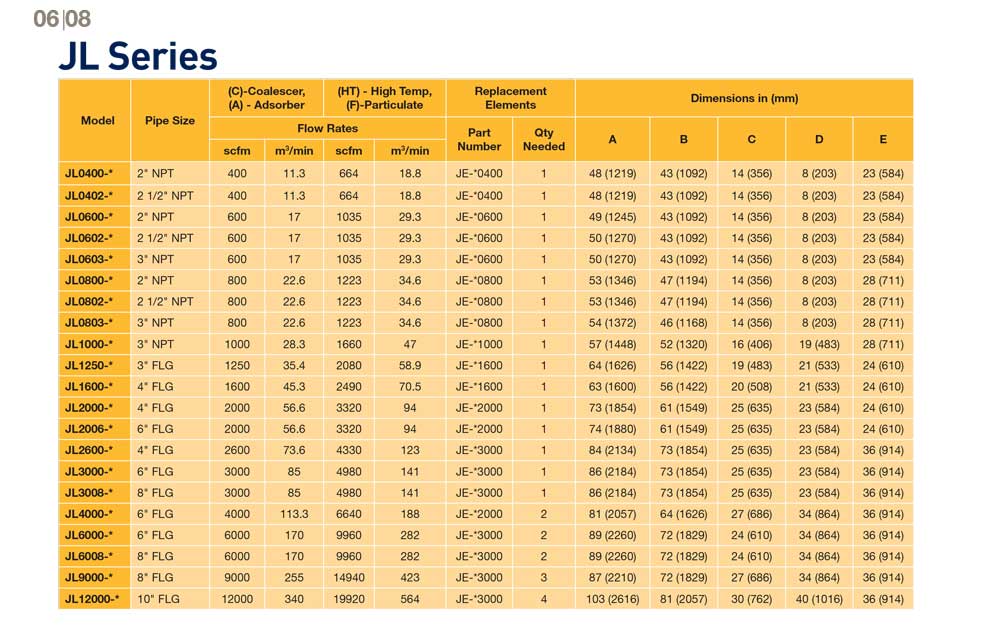

Parker Airtek J Series Elements
