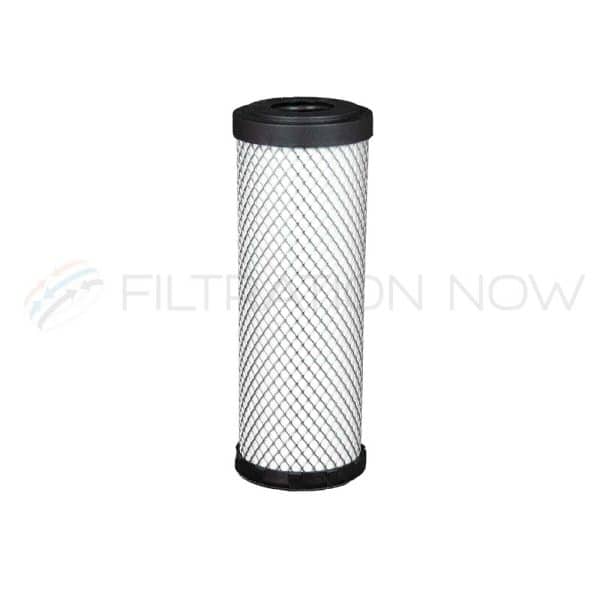

PneuTech Activated Carbon Filter Part 9060115

Description

PneuTech Filter Elements

Particulate Filter

• Particulate removal
• 99.99% efficiency
• Particle removal down to 3 microns

High Efficiency Coalescing Filter

• High quality compressed air filtration
• 99.999% Efficiency
• Particle Removal down to 0.01 Micron
• Max oil carryover 0.008 PPM w/w
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 1)

2 in 1 Filter

• Particulate removal or coalescing prefiltration
• 99.99% efficiency
• Particle removal down to 1 micron
• Nominal pressure drop 0.5 PSID
• ISO 8573 (Class 3)

Utility Grade Coalescing Filter

• General compressed air filtration
• 99.999% Efficiency
• Particulate removal down to 1 Micron
• Max oil carryover 0.4 PPM w/w
• Nominal Pressure Drop 0.75 PSID
• ISO 8573 (Class 2)

Activated Carbon Filter

• High purity extended surface area activated carbon removes hydrocarbon mist and vapor
• Max oil carryover 0.002 PPM w/w
• Nominal Pressure Drop 1.2 PSID

All coalescing filter elements utilize a pleated media design to increase surface area. The higher surface area decreases pressure drop and maximizes the element’s contaminant holding capacity.
