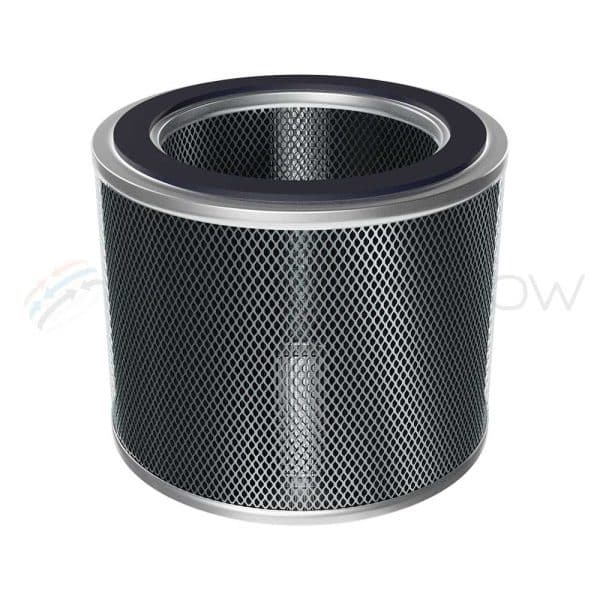

Solberg Wire Mesh Element Part # 274S

Description

Solberg Wire Mesh Element Part # 274S

Features

S Media: Epoxy Coated Wire Mesh Pleated Media

• Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
• Filter change out differential: 15 – 20″ H₂O over initial ΔP
• Less maintenance
• More durable than paper media
• Moisture resistant
• Handles hot air and oil mist from unload cycle of reciprocating/piston compressor
• Dust loading capacity is increased 40 % – 50% with prefilter
• Optimal sealing surface & design

S2 Media: Corrosive Resistant 316 Stainless Steel Mesh Pleated Media

FXF Media: Wrapped Polyurethane Foam Media

• Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
• Filter change out differential: 15 – 20″ H₂O over initial ΔP
• Low pressure drop
• Expanded metal on both sides of the media
• Foam wrap material construction

Options

S Media: Epoxy Coated Wire Mesh Pleated Media

• Polyester – 1, 4, 25 & 100 micron
• HEPA – 99.97% D.O.P. efficiency to 0.3 micron
• Stainless Steel Nomex: High temperature Nomex cloth – 99+% efficient, Reinforces by stainless steel wire mesh & expanded metal
• Activated carbon

FXF Media: Wrapped Polyurethane Foam Media

• Media: HEPA, polyester, paper, activated carbon

Endcap Styles

• C = Closed one end, open on other end
• G = Galvanized metal
• M = Molded plastisol
• N = Neoprene blended gasket on open endcaps
• R = Mixed rubber/cork gasket on open endcaps
